Heat is rarely the problem in manufacturing. Uncontrolled heat is.
Across moulds, dies, packaging systems, and industrial machinery, the wrong heating element can lead to thermal lag, uneven heat distribution, excessive energy consumption, and recurring maintenance shutdowns.
This is where understanding the difference between cartridge heaters and tubular heaters becomes critical. While both are designed for industrial heating, their thermal performance, heat concentration, installation style, and application suitability are fundamentally different.
At DHE Heaters, one of the leading industrial heater manufacturers in India, we often help customers understand that the right heater design is just as important as the heater quality itself.
A cartridge heater is designed to be inserted into a bore hole inside a metal block, mould, platen, or die. It transfers heat through direct metal-to-metal contact, making it one of the most efficient heating methods for solid metal applications.
Because of its compact construction, a cartridge heater offers high watt density and delivers precise localised heating. This is especially important in applications like plastic injection moulding, where maintaining accurate temperature zones directly impacts product quality and process consistency.
Proper fitting is critical for cartridge heater performance. The borehole should be tightly machined to minimise air gaps. Even a small gap can create insulation around the heater, reducing heat transfer and causing overheating.
Tubular heaters consist of a resistive heating element enclosed inside a metallic sheath. Depending on the application, the sheath may be made from stainless steel, copper, iron, aluminium, or other specialised materials.
Inside the sheath, magnesium oxide powder acts as thermal insulation while efficiently transferring heat from the element to the outer surface.
One of the biggest advantages of tubular heaters is their flexibility in design. They can be manufactured in multiple configurations, including straight, coil, U-shaped, C-shaped, J-shaped, manifolded, and custom-built forms.
Tubular heaters generally operate at lower watt density compared to cartridge heaters, making them highly suitable for fluid, gas, and air heating applications.
Explore High-Efficiency Heating Systems Trusted Across Demanding Industrial Applications and Manufacturing Environments

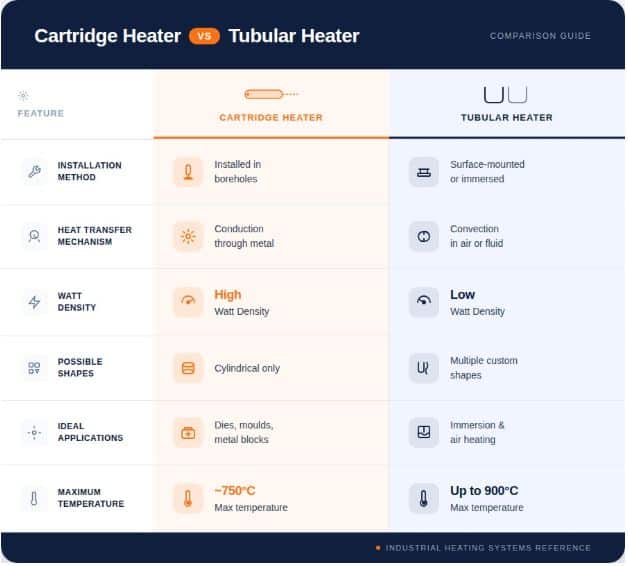

The easiest way to choose between a cartridge heater and a tubular heater is by asking one simple question:
Are you heating a solid metal or a liquid/gas medium?
If the application involves moulds, dies, platens, or solid metal surfaces, cartridge heaters are usually the preferred option because of their precise heat transfer and high watt density.
If the application involves heating fluids, gases, or air, tubular heaters become the better choice due to their flexible design and compatibility with immersion and convection heating systems.
Beyond heater type, specifications such as watt density, sheath material, voltage, temperature range, shape, and terminal configuration also play a major role in performance and durability.
A loose bore fit creates air insulation around the heater, reducing heat transfer efficiency and causing overheating. Many cartridge heaters fail prematurely simply because the bore hole was not machined accurately.
Higher watt density does not always mean faster heating. If the immersion media cannot absorb the heat efficiently, the heater overheats and fails early. This can also contaminate the fluid being heated.
Stainless steel works well for many applications, but corrosive liquids or high-temperature environments may require specialised materials such as Incoloy. Using the wrong sheath material significantly reduces heater life.
As industries move toward tighter process control and higher production efficiency, precision heating is becoming a critical factor in manufacturing performance. Thermocouple-integrated band heaters are now helping industries achieve faster thermal response, better temperature accuracy, and improved process stability across demanding applications. To understand how integrated heating systems are reshaping modern manufacturing, explore DHE’s detailed insights on the future of precision industrial heating:
Best Industrial Heater in India for 2026 – How Thermocouple-Integrated Band Heaters Are Redefining Precision Heating
Most industrial heating applications are highly specific and require customised heater configurations.
For example, a cartridge heater designed for plastic injection moulding at 380°C will require different specifications compared to a sealing jaw operating at 220°C. Similarly, immersion heaters used for chemical solutions require different sheath materials compared to those used for water heating.
At DHE Heaters, we bring more than 35 years of experience in manufacturing customised industrial heating solutions for various industries and applications.
From watt density and voltage to sheath material, shape, size, and terminal configuration. Every detail matters when selecting the right industrial heater.
We manufacture high-quality cartridge heaters, tubular heaters, immersion heaters, and custom industrial heating equipment for customers across India and export to over 40 countries worldwide. Looking to improve thermal performance, process stability, and production efficiency? Contact DHE Heaters for precision-engineered industrial heating solutions tailored to your application.
