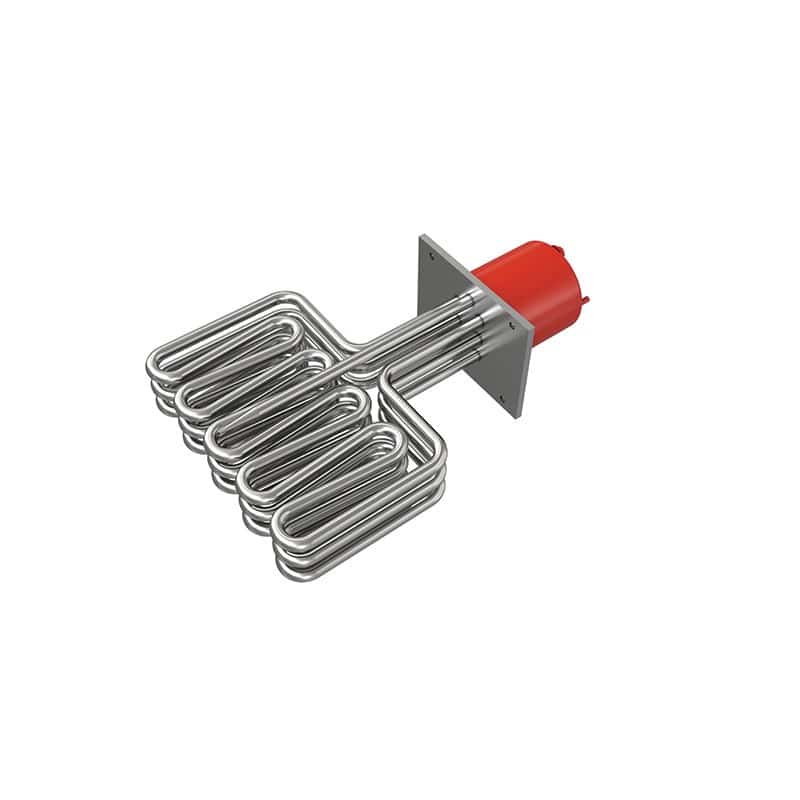

DHE offers U-shaped multi-finger tubular heaters as well as custom-bend tubular heaters. The double-ended heating element can be shaped into a variety of shapes, such as spiral, compound, multi-axial, and multi-plane, from standard bend configurations. Furthermore, custom-bonded heating elements with tighter tolerances are available to meet the requirements of particular applications. Multi-shape heating elements offer a wide range of mounting and termination configurations, making them highly sought-after by industrial customers.
| Sheath Material | Stainless Steel, Inconel alloy, Titanium |
|---|---|
| Conductor | Ni-Cr 80/20 |
| Watt Density | up to 40 W/in2 |
| Insulation | High-purity siliconized MGO |
| Voltage | 110 V to 415 V |
| Resistance Tolerance | ±10% |
| Immersion Length | Customize |
| Length Tolerance | ±2% or ±5mm |
| High Voltage Tolerance | 0mA@1500V |
| Max. Temp | 750 degree C |
| Designed to be sealed with either epoxy or silicone to prevent moisture ingress. |
| Compacted with MGO insulation, heat transfer from resistance wire to sheath material & media with faster, more efficient thermal expansion. |
| Integrated sensors enable the monitoring of over-temperature. |
| Fast Heat up time |
| Easy Installation |
| Increased Efficiency |
| Low Maintenance |
| Customized Shape |
| Widely used for heating high viscous fluids |
| Heating of heavy oil & hydraulic oil & water |
| Processing engineering & apparatus |
| Industrial ovens |
| Plastic & Packaging Industries |
| Preheating Process gases Equipment |
