Nozzle heater

Nozzle heater

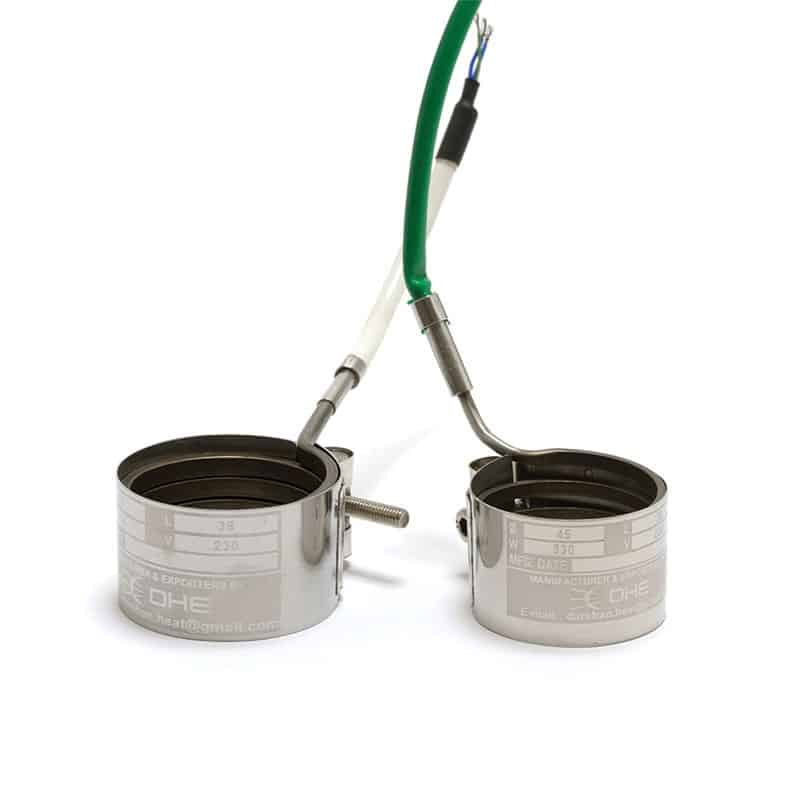

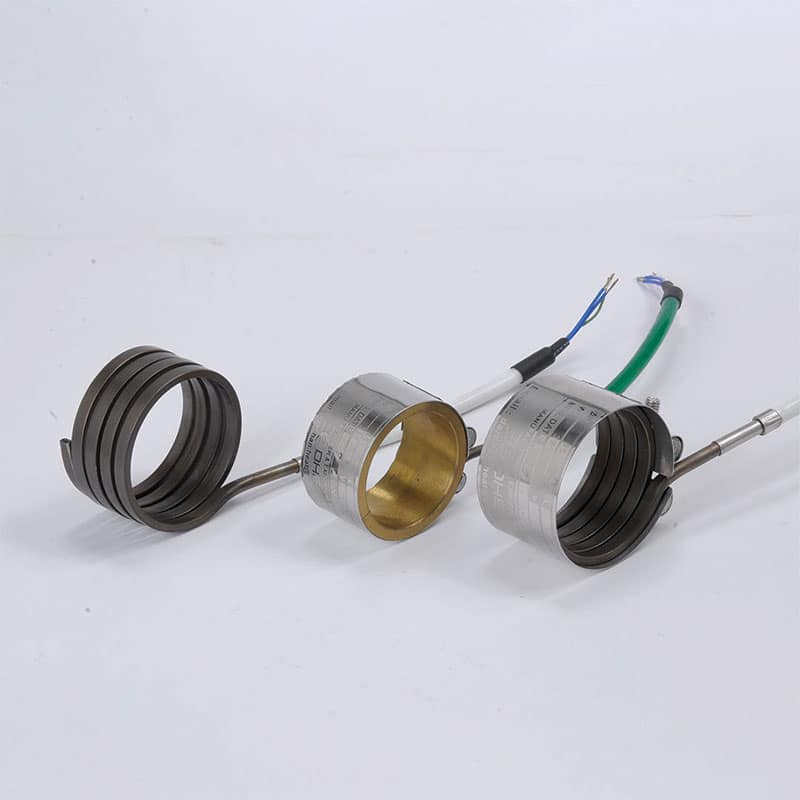

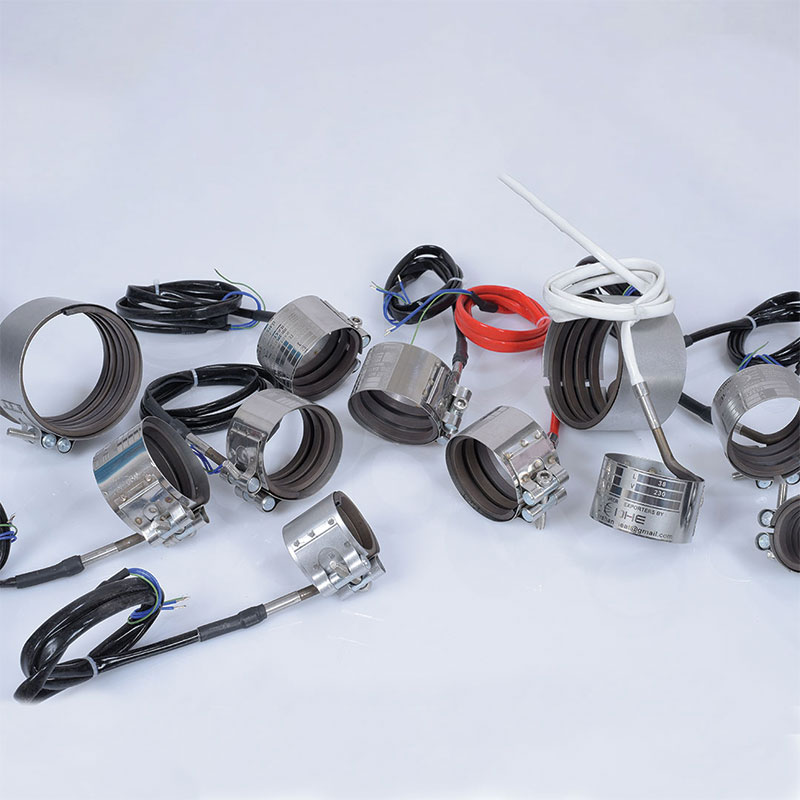

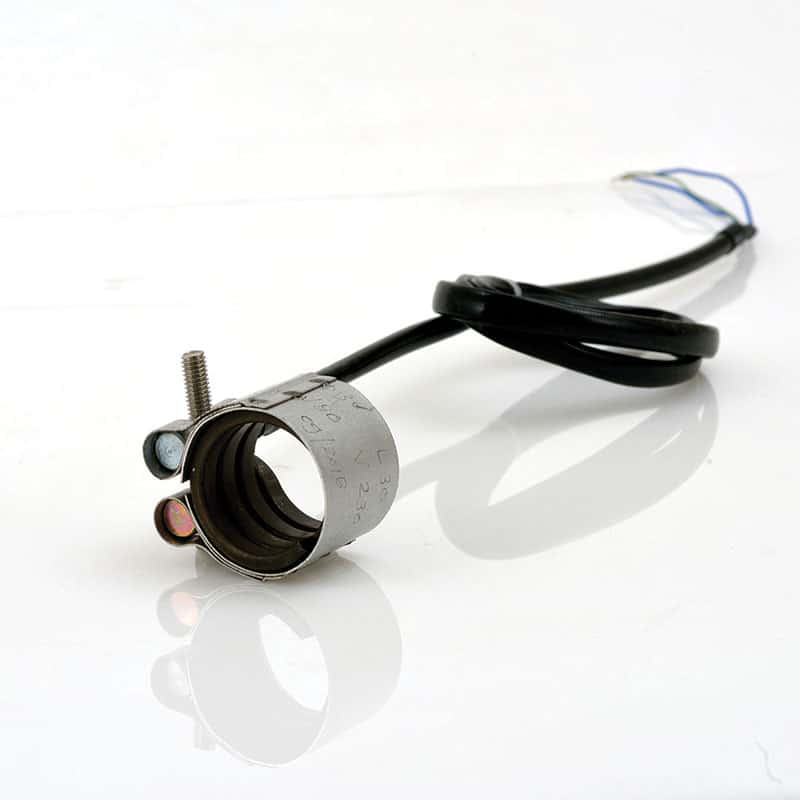

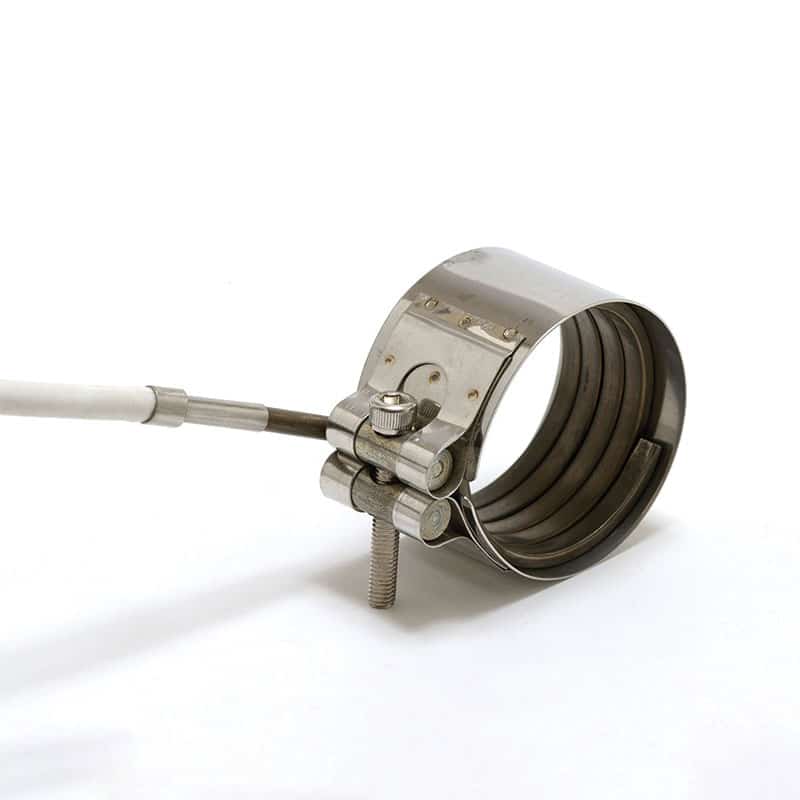

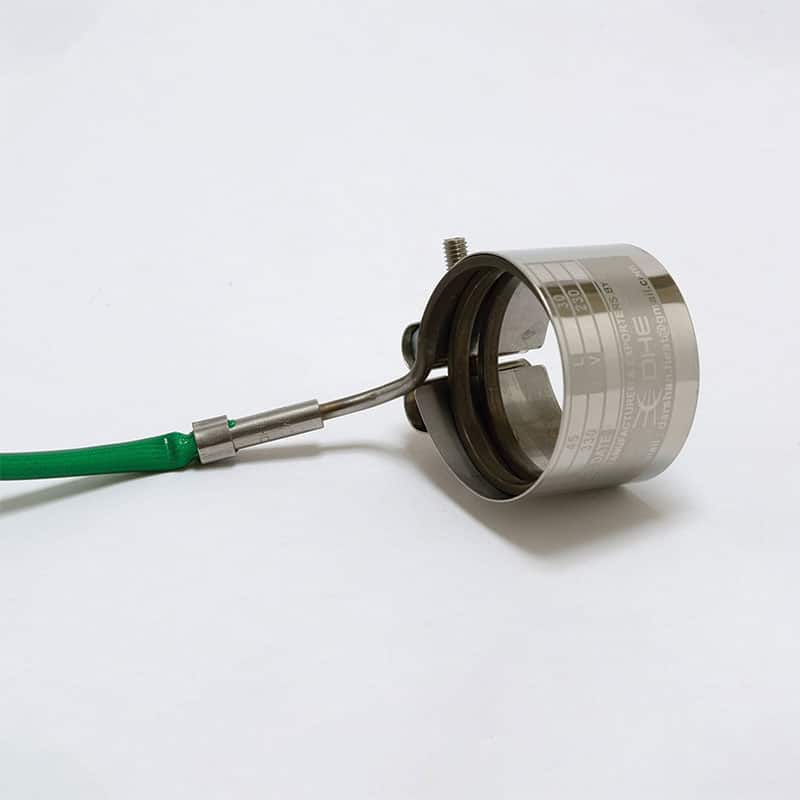

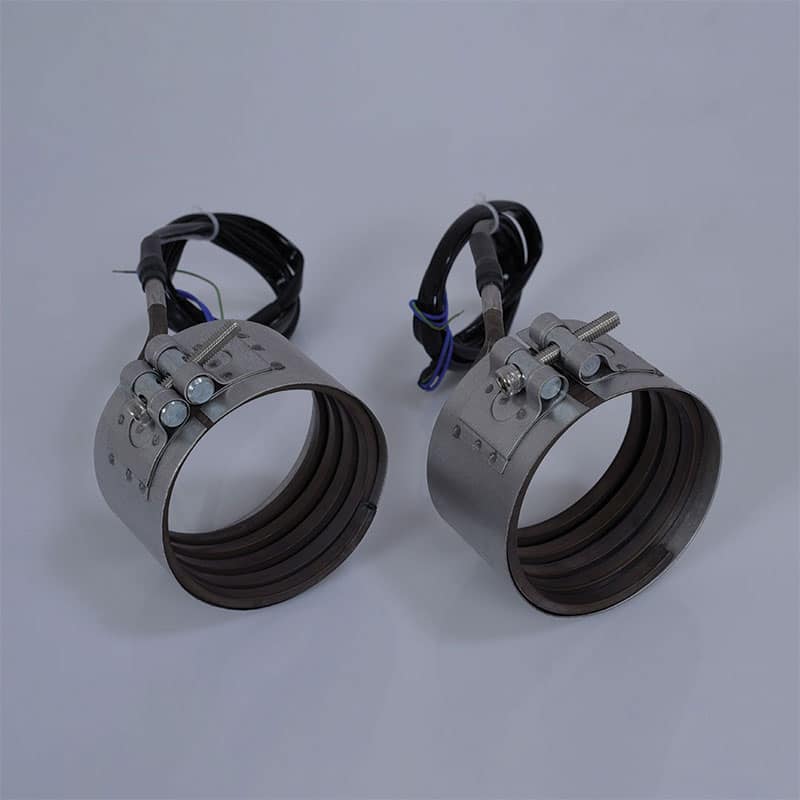

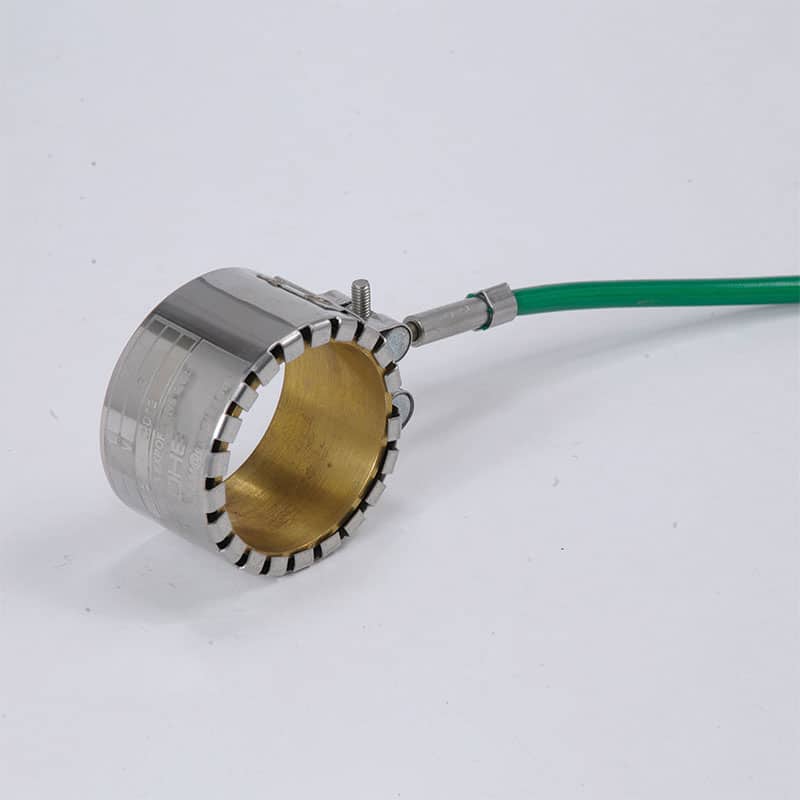

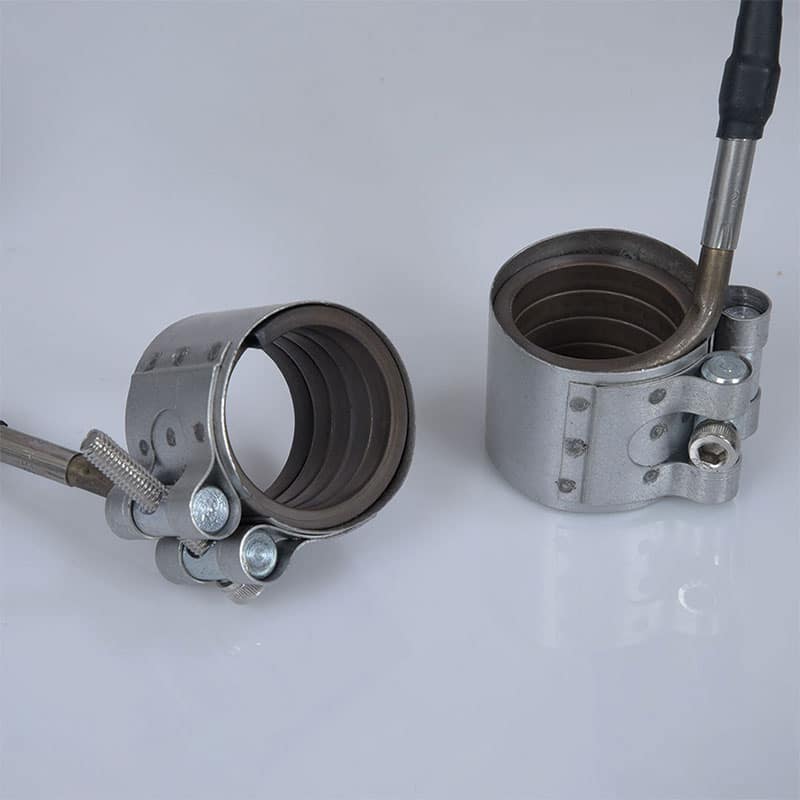

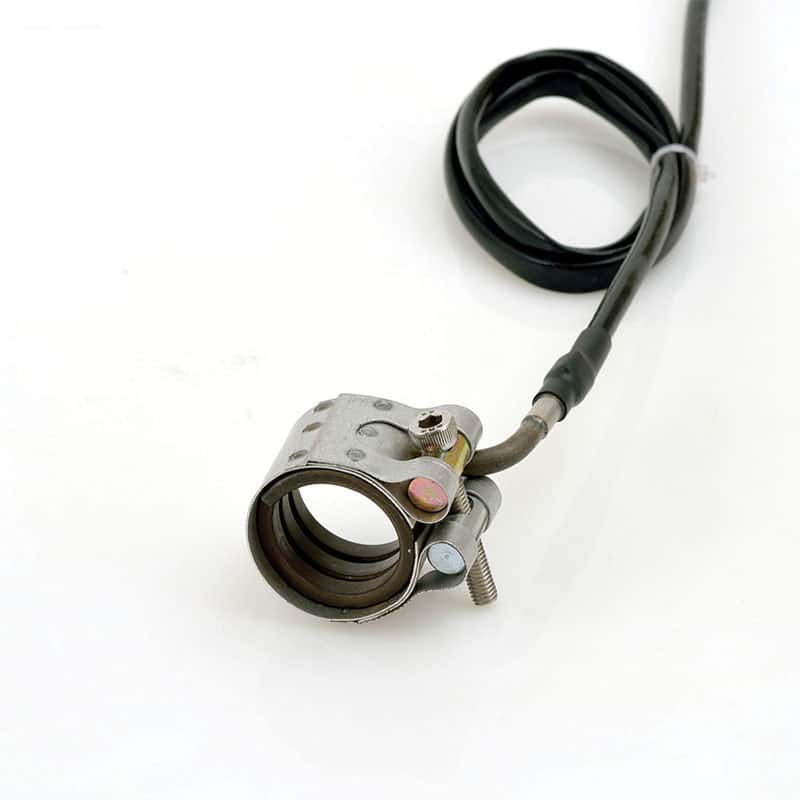

DHE offers a Coil Nozzle Heater that is designed to fit into the nozzle of a high pressure casting machine and plastic Process industries. The heating element is usually made of nickel and chromium, which are strong metals that don’t break down easily at high temperatures or when exposed to corrosion. The heater can achieve high temperatures in a short period of time and keep a consistent temperature throughout its length. The heaters are subjected to a very high pressure that guarantees high insulation, high thermal exchange, no internal gaps, and a perfectly smooth contact surface for optimal and homogeneous heat transfer to all parts of the nozzle.

Technical Specifications

Sheath Stainless Steel/Mild Steel/ Brass
Conductor Compressed magnesium Oxide (MgO)
Working Temperature up to 750 °C
Power Supply 48V, 110V, 230V and 380V
Power Tolerance +/- 10%
Sheath Material Stainless Steel / Nickel alloy
Insulation 10 MW at test voltage 500V DC
Leakage current ≤ 0.5mA at test voltage 250V AC
High Voltage Test 0mA @800V
Max. Surface Load on heater sheath +/- 5%
Minimum bending radius( internal) 3 mm
Connection Leads Nickel conductor with PTFE / Fiber Cable

Features

The thermal profiling method creates very uniform temperature profiles along the nozzle length.
A stainless steel outer shell ensures a long-lasting protective casting.
Optimum heat transfer with extra protection
Sealed heater construction prevents failure due to contamination or moisture.
Very long and efficient service life.
Copper alloy casting can reach temperatures of up to 650 degrees Celsius.

Applications

Plastic injection molding machines
Blow molding machines
Hot Runner systems
Extrusion Machines & Packaging Industries
Thermoforming
