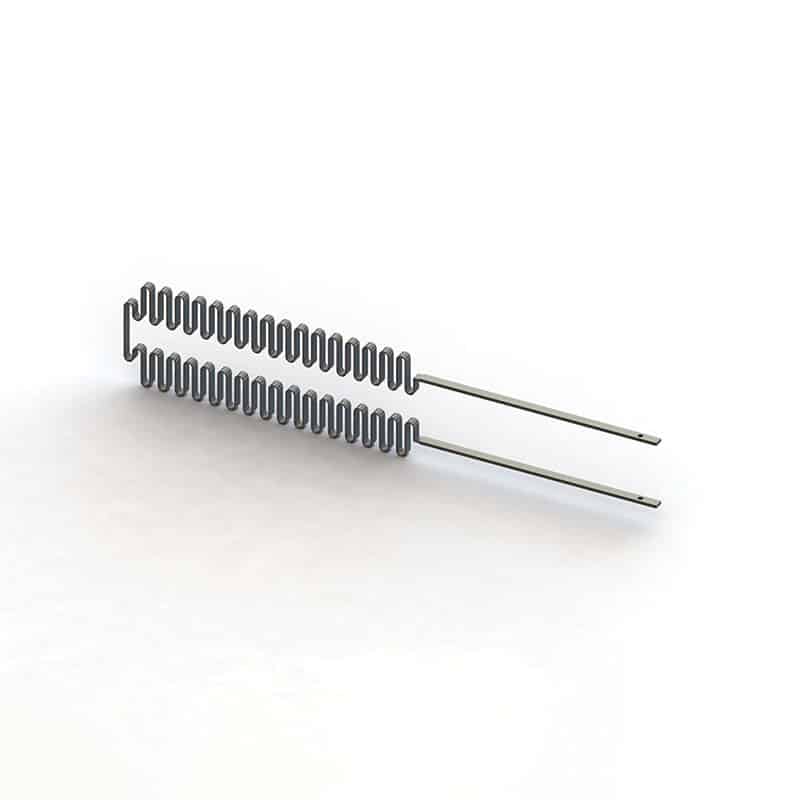

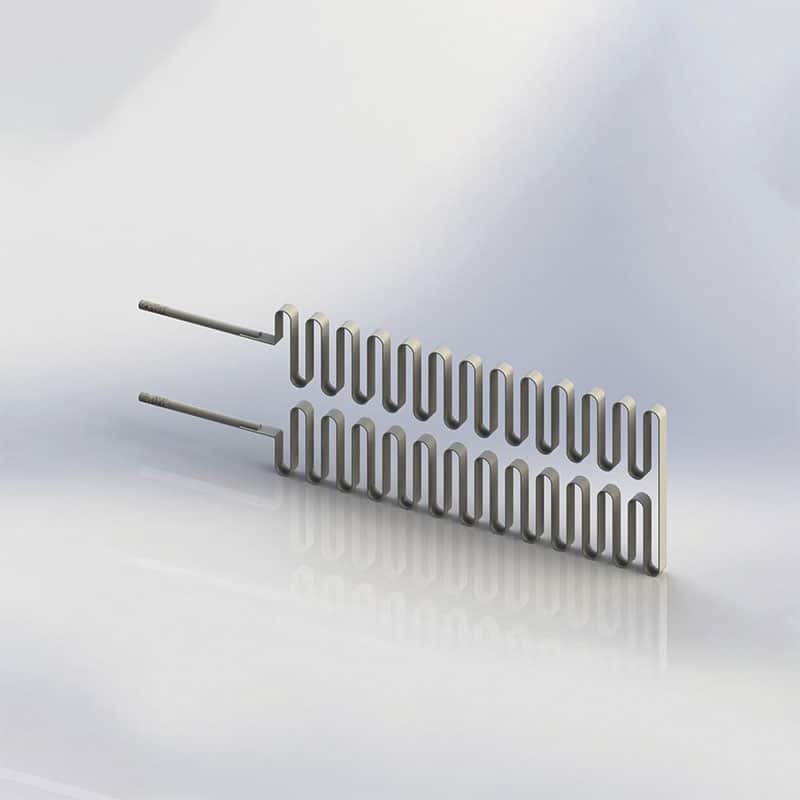

Metallic Heating Elements

Metallic Heating Elements

DHE offers Metallic heaters have the metal heating element directly exposed. Because of this, heat has no covering to protect it. As a result, there is excellent efficiency in the heat energy transfer from the Metallic heating element to the solutions. These designs are considerably less expensive and require less upkeep than other options. They act as a de facto way to reduce the amount of watt density needed and stop heat-sensitive materials from degrading.

Technical Specifications

Heating Element Nikrothal 80/20, Nikrothal 70/30, KANTHAL A1, KANTHAL APM
Temperature Range Up to 1000°C
Power 1 kW to 24 kW
Voltage 12 V to 400 V
Watt Density Up to 10 watt/cm²
Cold Resistance Tolerance ±3%
Length Customize
Termination Customize

Features

High Oxidation resistance
Flexible Shape – Metallic Heating elements have a high degree of ductility, allowing for almost limitless design possibilities. You can therefore adapt them to the application.
Rapid heating in less time
No need of extra accessories
Uniform heating

Applications

Ammonia Cracker
Furnace Element
Industrials Ovens and heaters
Lab Equipment, Medical and Scientific equipment
Corrosive fluid, Alkaline medium
Oil and water application
Machine Component
Freeze protection and food process equipment
