Flexible Mainfold Heater

Flexible Mainfold Heater

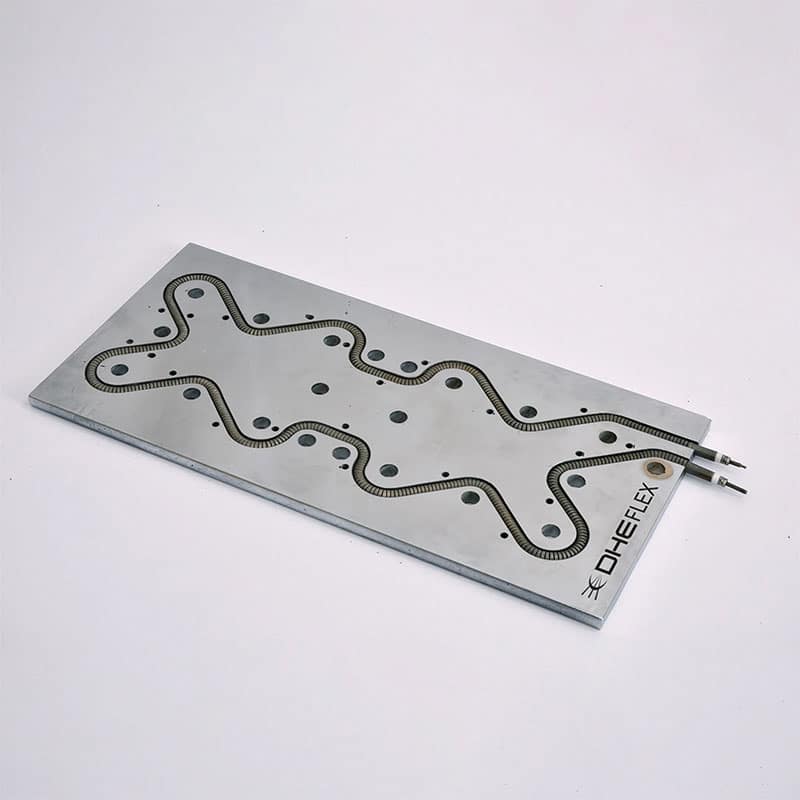

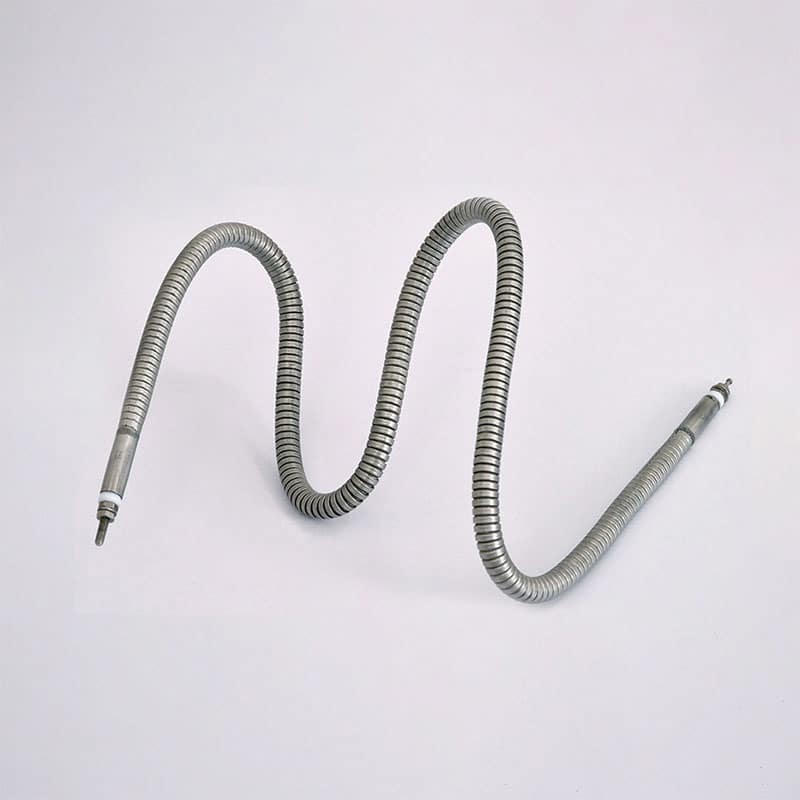

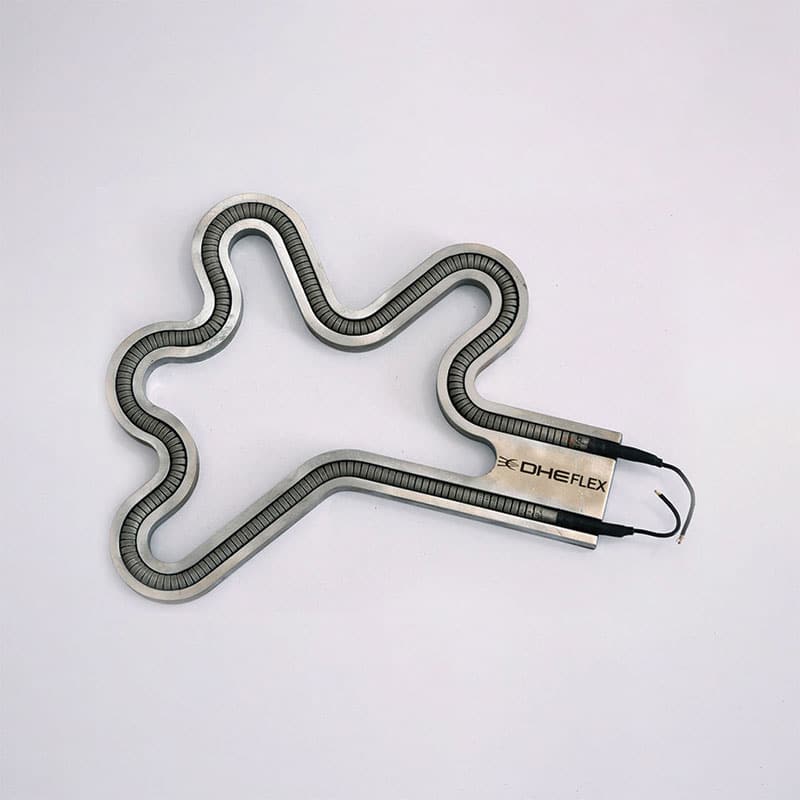

DHE offers the Flexible Manifold heaters are designed to compress into the groove providing superior heat transfer. Our flexible heater is designed with a strong construction incorporating more thermal mass and is user-friendly due to its flexible solid casing that remains in the groove. It is also easy to install. This flexible manifold heater is made of chrome nickel steel and has a nominal sheath size of 6.5 mm and 8.5 mm. It has a standard element with a terminal post that gives you a cold section that’s about 30 mm for 6.5 and 35 mm for 8.5.

Technical Specifications

“DHEFLEX” available in round section diameter 6.5mm , 8mm, 8.5 mm
Square shape 8mm × 8mm
Various length available
Can easily bend by hand in minimum 12mm radius with tapping plastic hammer
Various output connections available
Stock sizes available in 230V
Diameter tolerance +0.1mm
length tolerance +1% or ±5mm
Resistance tolerance +10%
Watt density 7W/cm² in 6.5mm size & 8W/cm² in 8mm size
High voltage resistance 1000V – AC
Leakage current 0mA@ 1000V
Sheath temperature 750°C

Features

Different Bending Shapes
No special installation tools required
Heating systems are swaged in order to facilitate the rapid transfer of heat.
Rapid Heat Transfer and distribution
Smaller bending Radius
More even distribution of heat when compared to a standard tubular heater
Moisture resistant pin connection

Applications

Hot Runner System
Plastic Molds & Dies
Medical Equipment
Heating Chemical Solutions
Packaging Machinery
Ovens & Dryers
